Gang saw LTX 1203-40

• Place of Origin:

   China

• Type:

  Polishing and Surface Finishing Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1291030

• Place of Origin:

  Turkey

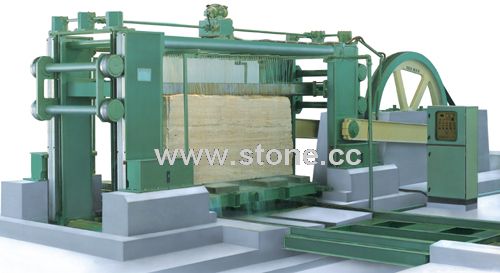

• LTX 1203-40 is an open panel system machine with a specially framed bodies made of high quality steel to endure high tension forces. Parts of the body which blade holder moves on have V shaped prism which fixed to body with bolts.<br /><br />Blade holders are completely made of steel to designed to resist tension of the rods. Adjustment of various cutting thickness is very simplified in LTX 1203-40 is ran on four sideways which are located in an oil bath. These slide ways are made of wear-resistant cast iron and bronze. <br /><br />LTX 1203-40 operated by a motor which is 100 hp and a hydraulic system mounted on the motor to provide soft start. Blade holders are moved by big screws installed on columns which operated by a motor reducer group. Cutting speed is controlled electronic inverter system.<br /><br />Easy-use is considered most important criteria in design of the LTX 1203-40
