Gang Saw KT 80

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1291039

• Place of Origin:

  Turkey

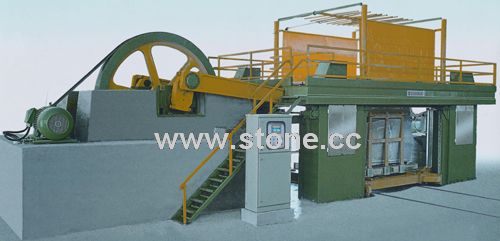

• KT-80 designed on block lifting principle, enables to achieve of the max productivity in marble sawing. KT-80 guarantees the required stability and a constant standard in the quality of the finished product. KT-80 has rectilinear, long run motion, for fast cutting.<br /><br />A robust blade frame allows the tensioning of the diamond blades up to 12 tons each. The blade frame is the fixed position type and moved by a double connecting rod, while the block trolley installed on a platform rises towards to the blades. Movement of platform is provided by big screws (90mm. dia.) which are moved by a transmission group based on four angular reduction units and a central operations group, this group commands fast movement and variable speed movements of the platform.<br /><br />The platform guided on four slide ways, two sides are V shaped prismatic slides, other two sides are in contact with flat slides. Slides are specially chromed and interchangeable. Specially manufactured steel connecting rods lightened by machine tools, free from weld in order to ensure a very high resistance for dynamic stresses. An electrical motor through a belt transmission, moves a big cast iron flywheel which fixed on the main axle, drives two cranks connected to blade frame.<br /><br />Blade frame is completes its motion by a specially designed system by SERMAK which consist of articulated pendulums. This system has strong bearings and bearing friction losses are minimized. Machine can be supplied with hydraulic blade tensioner. <br /><br />All of electrical components made of high quality components by following EEC standards.
